Mission

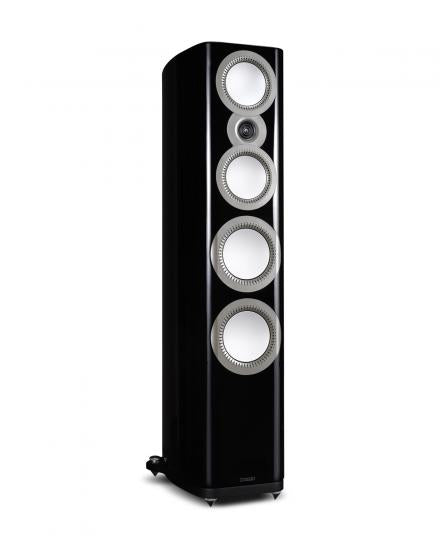

ZX5 3-Way Floorstanding Loudspeaker (Pair)
ZX5 3-Way Floorstanding Loudspeaker (Pair)
Regular price
₹ 216,900
Regular price
Sale price
₹ 216,900
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
ABOUT THIS PRODUCT
The ZX Series' most capable speaker. Five dedicated aluminium DiaDrive drivers — dual 6.5" bass, dual 5.25" midrange, and a 1.5" ring dome tweeter — deliver bass extension to 30Hz, a fully isolated midrange for crystalline vocal and instrumental detail, and 114dB peak output. Built for large rooms and demanding listeners who want everything the ZX Series has to offer in a single speaker.
KEY FEATURES
- Dual 6.5" (165mm) aluminium cone DiaDrive bass drivers — deep, controlled bass to 30Hz (–6dB)
- Dual 5.25" (130mm) aluminium cone DiaDrive midrange drivers — dedicated midrange enclosure for natural, focused vocals
- 1.5" (38mm) ring dome tweeter — extends HF cleanly to 24kHz
- Inverted Driver Geometry — tweeter below midrange for optimised time alignment
- Dual crossover points at 570Hz and 2.5kHz — true 3-way integration
- Asymmetric serrated slot port — eliminates port noise and airflow distortion
- Over-size magnet systems with dedicated driver bracing throughout
- Available in Gloss Black and Gloss White
SPECIFICATIONS
| Configuration | 3-Way Floorstanding, Bass Reflex |
| Bass Drivers | 2 × 6.5" (165mm) Aluminium Cone |
| Midrange Drivers | 2 × 5.25" (130mm) Aluminium Cone |
| Treble Driver | 1 × 1.5" (38mm) Ring Dome |
| Sensitivity | 91dB (2.0V @ 1m) |
| Nominal Impedance | 4Ω (compatible 8Ω) |
| Minimum Impedance | 3.4Ω |
| Recommended Amplifier Power | 30 – 200W |
| Peak SPL | 114dB |
| Frequency Response | 36Hz – 24kHz (±3dB) |
| Bass Extension | 30Hz (–6dB) |
| Crossover Frequencies | 570Hz and 2.5kHz |
| Dimensions (H×W×D) | 1,155 × 265 × 412 mm |
| Net Weight (per speaker) | 31.2 kg |
| Finishes | Gloss Black / Gloss White |
IN THE BOX
- Mission ZX-5 Speakers (Pair)
- Grilles
- User Manual
All prices are inclusive of 18% GST.
